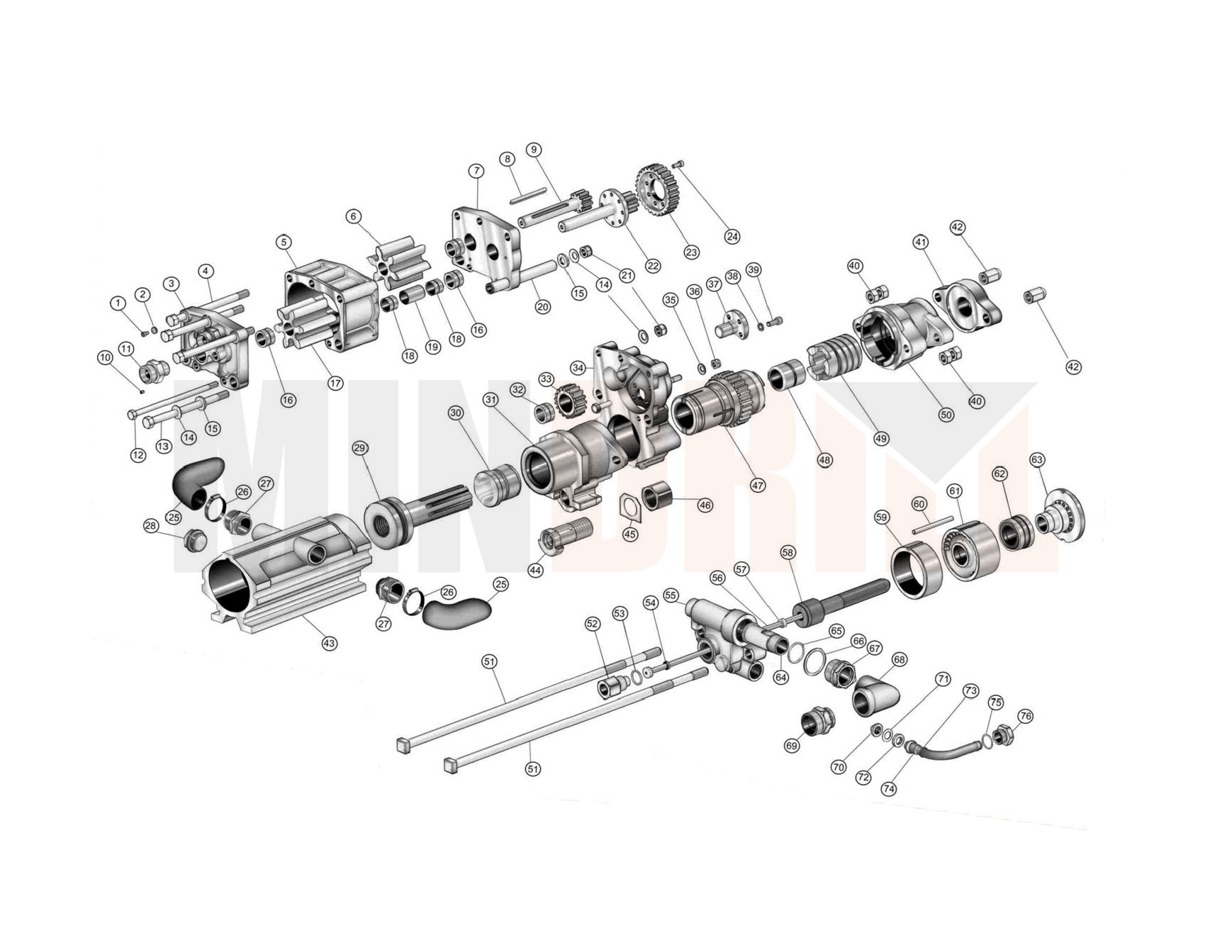

SN Ref. Part No. Part No. Parts Descriptions Qty.
1 109M618 5123 104 001 Cap Screw Socket Head 4
2 14962MT 5123 104 002 Spring Washer 4
3 A1843 5123 104 003 Cover, Back Rotation Motor 1
4 C3229 5123 104 004 Cap Screw 3
5 A1841 5123 104 005 Housing Rotation , Motor 1
6 B2645 5123 104 006 Rotor, Rotation Motor- Keyed 1
7 A1844 5123 104 007 Cover, Front Rotation Motor 1
8 23504316 5123 104 008 Key 1
9 B2651 5123 104 009 Pinion Driver 1
10 112M68 5123 104 013 Socket Head Set Screw 1
11 1356663 5123 104 010 Spud, Hose 2
12 C3227 5123 104 011 Cap Screw 2
13 C3228 5123 104 012 Cap Screw 2
14 149163MT 5121 137 026 Washer, Lockable 10
15 D2028 5123 104 014 Washer, Flate, Exter Thick 4
16 2766161SCN 5123 104 015 Bearing 4
17 B2646 5123 104 016 Rotor, Rotation Motor 1
18 2766161S 5123 104 017 Bearing 2
19 C3221 5123 104 018 Spacer, Bearing 1
20 C3218 5123 104 019 Sleeve, Locating 2
21 128M16 5123 104 020 Lock Nut(66743) 5
22 B2649 5123 104 021 Gear, Pinion 1
23 B2650 5123 104 022 Gear, Compound 1
24 109M820 5123 104 023 Cap Screw, Socket Head (109m812520) 8
25 C17791 5123 104 042 Deflector, Exhaust 2
26 32064 5123 104 025 Clamp, Exhaust 1
27 C17221 5123 104 041 Sleeve, Cylinder Exhaust 2
28 C17211 5123 104 024 Plug, Exhaust (Optional) 1
29 B2739 5123 104 026 Piston 1
30 B1250 5123 104 027 Liner, Front Cylinder 1
31 A17301 5123 104 028 Front Cylinder 1
32 2766181SCN 5123 104 029 Bearing 1
33 C3219 5123 104 030 Gear, Idle 1
34 E558 5123 104 031 Housing, Reduction 1
35 149122MT 5121 137 076 Washer, Lock 4
36 128M12 5123 104 033 Lock Nut (67605) (1278f) 2
37 C3220 5123 104 034 Shaft, Idler Gear 1
38 143M10 5123 104 035 Washer, Lock High Coller, M10 4
39 109M1020 5123 104 036 Cap Screw, Socket Head 4
40 D2165 5123 104 037 Lock Nut, Side Rod 4
41 B2720 5123 104 038 Reatiner, Front 44mm 1
42 C1727 5123 104 039 Nut, Side Rod 2
43 E89 5123 104 040 Cylinder 1
44 C3098 5123 104 043 Nut, Feed Screw 1
45 C3178A 5123 104 044 Washer, Tab Lock 1
46 C1876SP 5123 104 045 Nut, For Feed Screw Nut (Special) 1
47 A1845 5123 104 046 Chuck Gear 1
48 B27191 5123 104 047 Bushing, Chcuk, 44mm 1
49 B2906 5123 104 048 Chuck, 44mm 4 Dog 1
50 A1847 5123 104 049 Front Head 1
51 C3290 5123 104 050 Side Rod 2
52 C3038 5123 104 058 Plug, Water Tube 1
53 1642114 5123 104 059 O-Ring 1
54 D1402 5121 137 018 Seal, Water Tube 14mm 1
55 E560 5123 104 052 Back Head 1
56 C3700A 5123 104 053 Water Tube 14mm 1
57 XLS9 5123 104 054 Seal (0947570) 1
58 B2827 5123 104 055 Rifle Bar , Dummy 14mm 1
59 B2653 5123 104 056 Spacer, Back Head 1
60 C1745 5123 104 057 Pin, Location 1
61 A1368 5123 104 061 Valve Box 1
62 C2654 5123 104 062 Valve 1
63 B12701 5123 104 063 Plug, Valve Box 1
64 B2455 5123 104 060 Stem Air Inlet 1
65 164741 5123 104 064 O-Ring 1
66 D2100 5123 104 065 Washer, Air Stem Nut Copper 1
67 B2454 5123 104 066 Nut, Air Stem 1
68 C3039 5123 104 067 Fitting, Air Inlet 1
69 01012424 5123 104 072 Hose Spud 1
70 D2097 5123 104 073 Pad, Thurst 1
71 D2098 5123 104 068 Seal, Air Water Stem 1
72 D2099 5123 104 074 Washer, Thrust 1
73 1645703 5123 104 069 O-Ring 1
74 C3036 5123 104 075 Stem, Air Water 19mm 1
75 1648113 5123 104 070 O-Ring 1
76 D2017 5123 104 071 Nut, Air Bend 1
77 WHIPCHECK 2 5123 104 076 Whipcheck (Not Shown) 1
5123 104 077 Logo Plate 1
