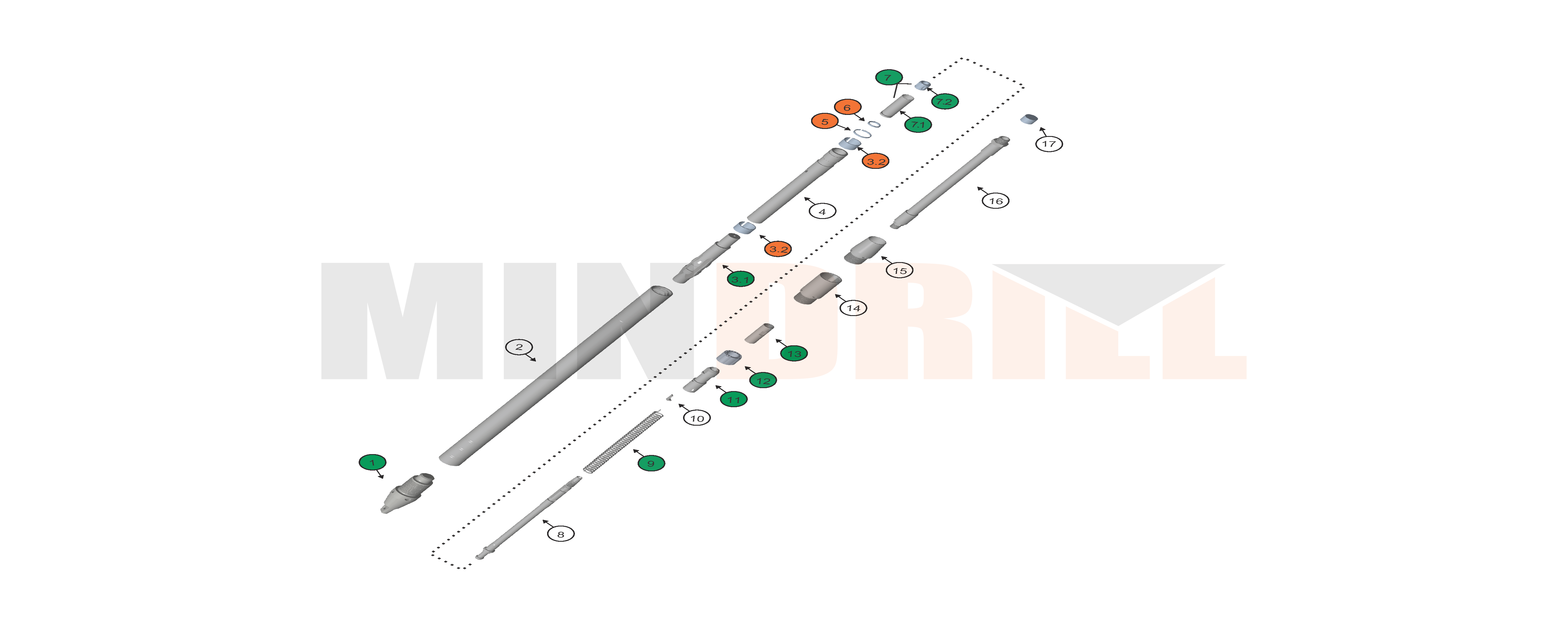

Exploded Views
| SN | Ref. Part No. | Mindrill Part No. | Descriptions | Qty. |
| 1 | 5121 178 025 | Rope Retainer | 1 | |
| 2 | 5121 178 009 51 | Casing (Threaded Type) | 1 | |
| 3.1 | GE0455130 | 5121 178 010 | Piston Slide | 1 |
| 3.2 | 5121 178 010 20 | Seal, Piston Slide | 2 | |
| 4 | GE0455141 | 5121 178 011 | Piston | 1 |
| 5 | YY191607 | 5121 178 013 | Piston Seal* | 1 |
| 6 | YY191605 | 5121 178 012 | Control Stud Seal | 1 |
| 7 | GS0458042 | 5121 178 026 | Control Liner w/Bushing | 1 |
| 7.1 | 5121 178 026 20 | Control Liner | 1 | |
| 7.2 | 5121 178 026 21 | Bushing | 1 | |
| 8 | GS0458040 | 5121 178 020 | Control Pipe and Liner | 1 |
| 9 | YY081707 | 5121 178 021 | Spring | 1 |
| 10 | YY081705 | 5121 178 023 | Safety Segment | 1 |
| 11 | GS0458055 | 5121 178 022 | Lock Sleeve | 1 |
| 12 | GP0458025 | 5121 178 024 | Elastic Block | 1 |
| 13 | YY081716 | 5121 178 017 | Control Stud Adapter | 1 |
| 14 | GS0456460 | 5121 178 015 | Control Stud Housing | 1 |
| 15 | GE0456450 | 5121 178 016 | Reverse Cone | 1 |
| 16.a | 5121 178 018 50 | Connection Air Hose, Complete (M22 x 1.5 (15L) | 1 | |
| 16.b | 5121 178 018 51 | Connection Air Hose, Complete (1/2″ NPT (optional) | 1 | |
| 17 | GE0452390 | 5121 178 019 | Cap | 1 |
