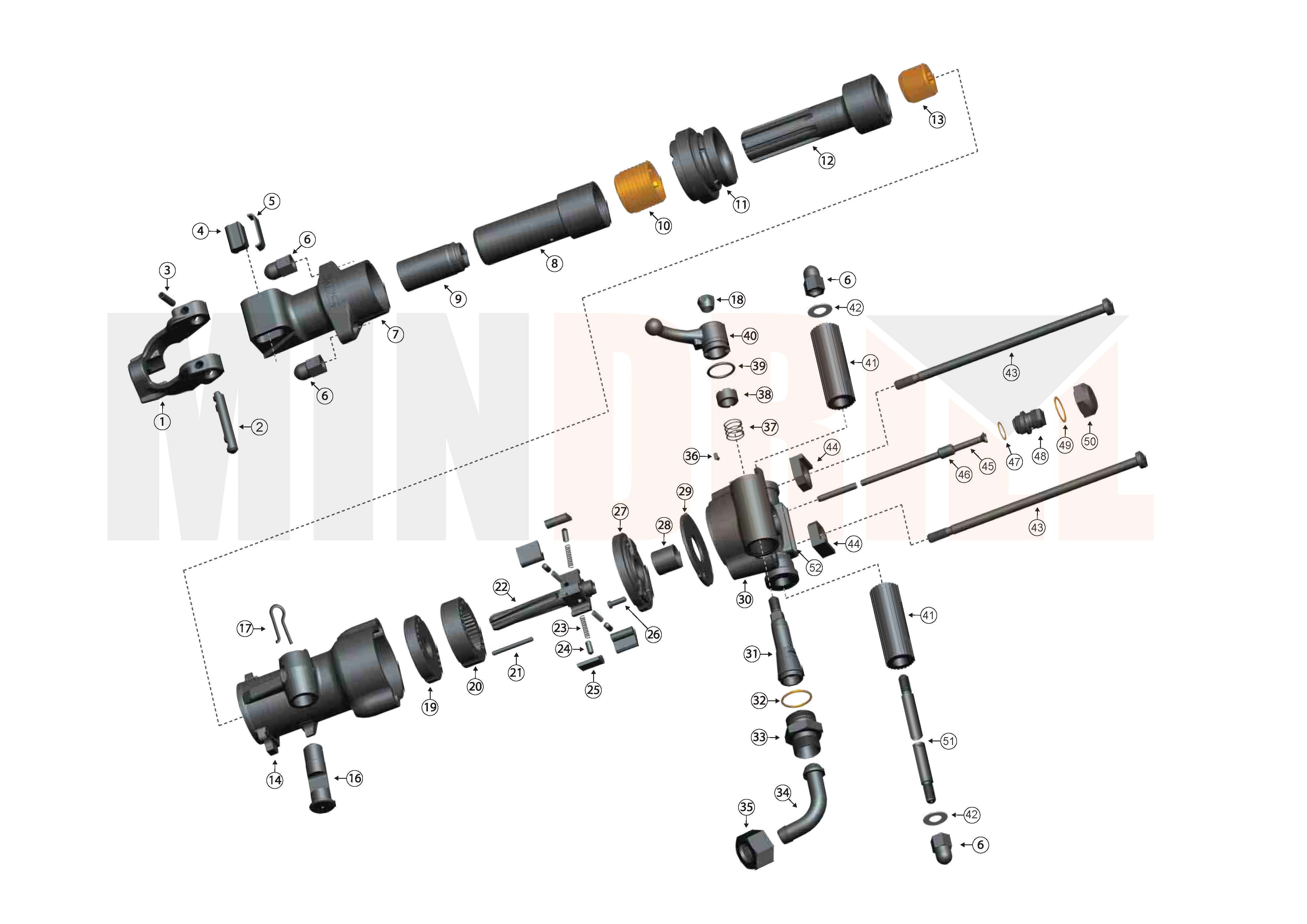

SN Ref. Part No. Mindrill Part No. Parts Descriptions Qty.
1 3121 0851 00 5121 109 001 50 Drill Steel Retainer 1
2 3121 0852 00 5121 109 002 51 Retainer Pin 1
3 0108 3392 00 5121 109 003 Tension Pin 2
4 3121 0030 00 5121 109 004 Rubber Buffer 1
5 3121 0029 00 5121 109 005 Buffer Plate 1
6 3121 0292 00 5121 109 006 Dome Nut 4
7 3121 0342 00 5121 109 007 Front Head 1
8-10 3121 0769 80 5121 109 008 80 Rotation Chuck, Comp. (H22x108) (SN 8,9 &10) 1
8 3121 0769 00 5121 109 008 Rotation Chuck 1
9 3121 0023 00 5121 109 009 50 Chuck Bushing (H22x108) 1
10 3115 1221 00 5121 109 010 Chuck Nut 1
11 3121 0339 00 5121 109 011 Intermediate Part 1
12-13 3100 8478 80 5121 109 012 80 Piston, Comp. (SN 12 & 13) 1
12 3100 8470 00 5121 109 012 Piston 1
13 3100 9299 05 5121 109 013 Rifle Nut 1
14 3121 0337 00 5121 109 014 Cylinder 1
16 3115 1778 00 5121 109 041 Outlet Valve (Modified) 1
17 3115 1779 00 5121 109 044 Lever For Extra Blowing (Modified) 1
18 3006 8734 00 5121 109 018 Conical Nut 2
19 3106 8683 00 5121 109 019 Guide Disc 1
20 3106 8682 00 5121 109 020 Ratchet Box 1
21 0108 1336 00 5121 109 021 Ratchet Box Pin 1
22 3101 3154 00 5121 109 022 Rifle Bar 1
23-25 3115 9200 90 5121 109 025 80 Pawl Set (4 Each & SN 23, 24 & 25) 1
23 3100 9140 02 5121 109 023 Pressure Spring 4
24 3100 9641 01 5121 109 024 Plunger 4
25 3101 3159 00 5121 109 025 Pawl 4
26-29 3106 8680 80 5121 109 027 81 Cover Comp. With Main Valve (SN 26, 27, 28 & 29) 1
26 3100 9665 00 5121 109 026 Guide Pin 1
27 3106 8680 00 5121 109 027 Valve Cover 1
28 3100 9894 01 5121 109 028 Cover Bush 1
29 3106 8681 00 5121 109 029 Main Valve 1
30 3115 0569 00 5121 109 030 Back Head 1
31 3121 0349 00 5121 109 031 Throttle Valve 1
32 3115 1045 00 5121 109 032 Copper Washer 1
33 9000 0345 00 5121 109 033 Adapter 1
34 3115 1170 00 5121 109 034 Hose Nipple 1
35 9000 0333 00 5121 109 035 Coupling Nut 1
36 3121 0329 00 5121 109 036 T-pin 1
37 3111 0136 00 5121 109 037 Spring 1
38 3121 0332 00 5121 109 038 Lock Washer 1
39 0663 2128 00 5121 109 039 O-ring 1
40 3115 0573 00 5121 109 040 Throttle Lever 1
41 3121 1372 00 5121 109 042 Handle Grip 2
42 3000 0119 01 5121 109 043 Washers 2
43 & 6 – 5121 109 045 80 Side Bolt Set (2 Each & SN 43 & 6) 1
43 3121 0343 00 5121 109 045 Side Bolt 2
44 3115 0574 00 5121 109 047 Washer 1
45 3121 0352 00 5121 109 048 Air Flushing Tube 1
46 3121 0336 00 5121 109 049 Packing For Air Flushing Tube 1
47 3000 9341 02 5121 109 050 Sealing Washer(small) 1
48 3100 9623 01 5121 109 051 Adapter 1
49 3101 4146 00 5121 109 052 Sealing Washer (Big) 1
50 3100 9643 01 5121 109 053 Protective Nut 1
51 3121 0360 00 5121 109 054 80 Handle Bolt Complete With Dome Nut 1
52 – 5121 109 055 Data Plate 1
