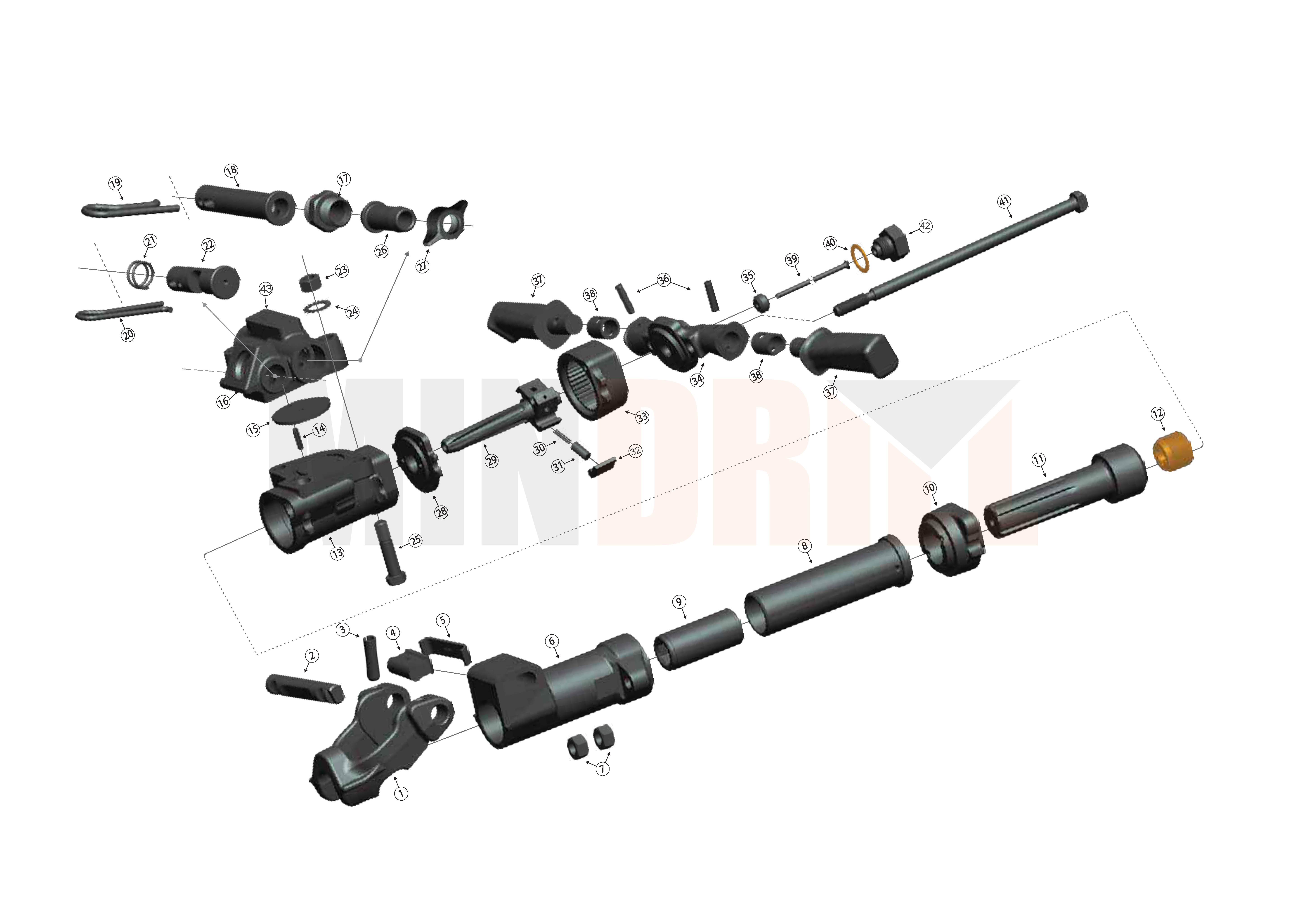

SN Ref. PartNo. Mindrill Part No. Description Qty
1 3121 0851 00 5121 109 001 Drill Steel Retainer 1
2 3121 0582 00 5121 109 002 Retainer Pin 1
3 0108 3392 00 5121 109 003 Tension Pin 2
4 3121 0030 00 5121 109 004 Rubber Buffer 1
5 3121 0029 00 5121 109 005 Buffer Plate 1
6 3111 0141 00 5121 113 006 Front Head 1
7 0266 1208 00 5121 113 007 Nut 4
8-9 3111 0185 80 5121 113 008 80 Rotation Chuck,Comp.(SN 8 & 9)
8 3111 0185 00 5121 113 008 Rotation Chuck 1
9 3111 0186 00 5121 113 009 Chuck Bushing 1
10 3111 0143 00 5121 113 010 Intermediate Part 1
11-12 3111 0162 80 5121 113 011 80 Piston, comp. (SN 11 & 12)
11 3111 0162 00 5121 113 011 Piston 1
12 3100 9299 08 5121 113 012 Rifle Nut 1
13 3106 0825 00 5121 113 013 Cylinder 1
14 0108 1238 00 5121 113 014 Spring Pin 1
15 3101 1586 01 5121 113 015 Main Valve 1
16-22 3115 1163 80 5121 113 016 80 Throttle Housing Comp. (SN 16-22)
16 3115 1163 00 5121 113 016 Throttle Housing 1
17 9000 0345 00 5121 113 017 Hexagon Nipple 1
18 3115 1190 00 5121 113 018 Throttle Valve 1
19 0580 0013 14 5121 113 019 Lever 1
20 3101 3664 00 5121 113 020 Lever 1
21 3001 3957 01 5121 113 021 Coil Spring 1
22 3101 4988 00 5121 113 022 Exhaust Valve 1
23 3000 1345 00 5125 124 026 28 Nut 2
24 0333 3139 00 5121 113 024 Lock Washer 2
25 3100 0194 06 5121 113 025 Bolt 2
26 3115 1543 00 5121 113 026 Hose Nipple 1
27 9000 0338 00 5121 113 027 Wing Nut 1
28 3106 0827 00 5121 113 028 Cover 1
29 3111 0145 00 5121 113 029 Rifle Bar 1
30-32 – 5121 109 025 80 Pawl Set (SN 30-32) 1
30 3100 9140 02 5121 109 023 Pressure Spring 4
31 3100 9641 01 5121 109 024 Pawl Plunger 4
32 3101 3159 00 5121 109 025 Pawl 4
33 3115 1167 00 5121 113 033 Ratchet Ring 1
34 3115 1166 00 5121 113 034 Back Head 1
35 3000 0121 00 5121 109 033 54 Rubber Packing 1
36 0108 1360 00 5121 113 036 Spring Pin 2
37 3310 0569 80 5121 113 037 80 Handle (Plastic)Assy. 2
38 3310 0572 00 5121 113 038 Bushing 2
39 3111 0140 00 5121 113 039 Air Flushing Tube 1
40 3100 9341 00 5121 113 040 Seal Washer 1
41 3111 0144 00 5121 113 041 Side Bolt 2
42 3100 0120 00 5121 113 042 Plug 1
43 5121 113 043 Name Plate 1
