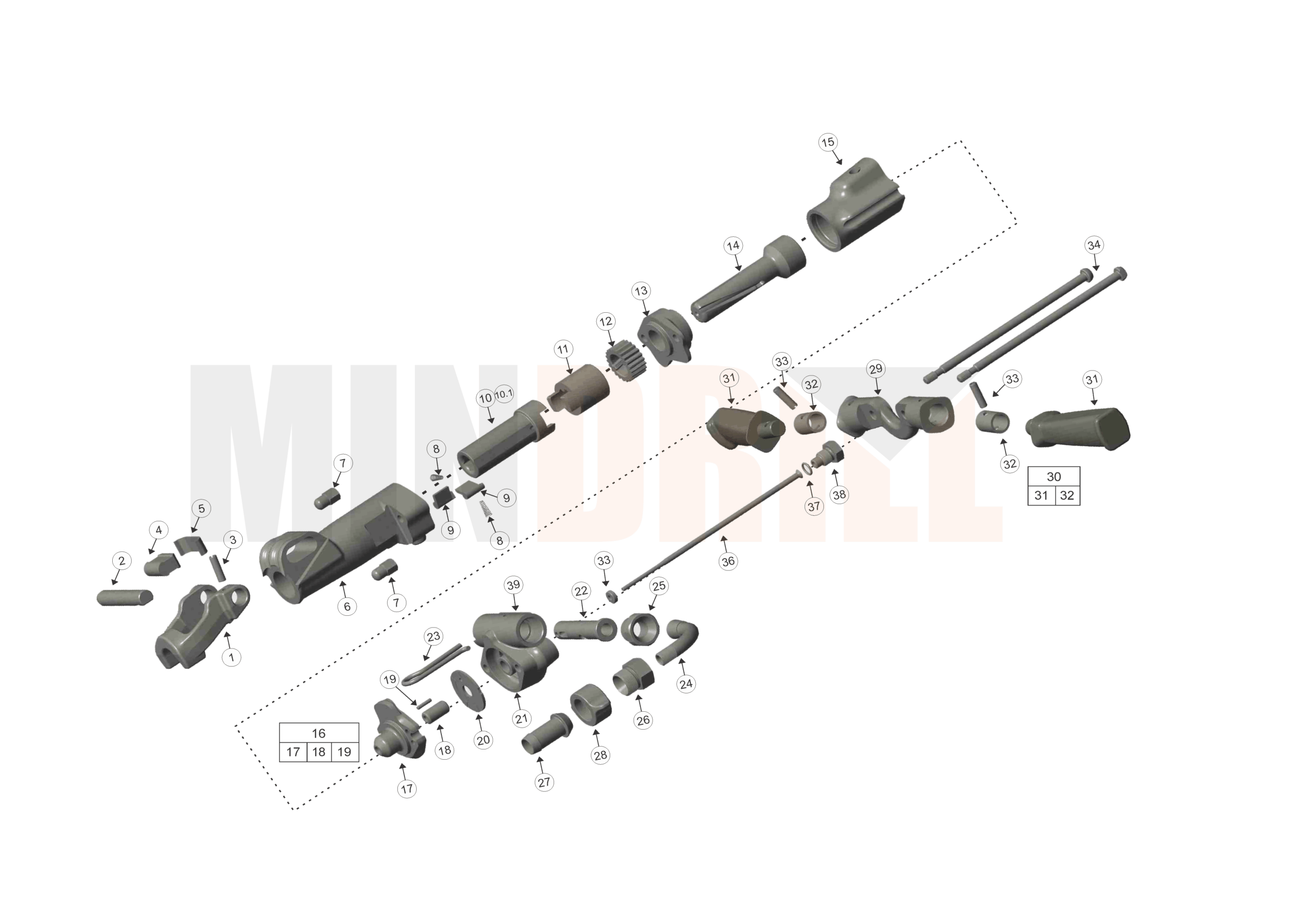

SN Ref. Part No. Mindrill Part No. Parts Descriptions Qty.
1 3115 2475 00 5121 119 001 Drill Retainer 1
2 3115 2068 00 5121 121 002 Retainer Pin 1
3 0108 1359 00 5121 119 004 Slotted Spring Pin (Ø 8 X 32 mm) 1
4 3111 0057 00 5121 119 005 Rubber Buffer 1
5 3111 0056 00 5121 119 006 Buffer Plate 1
6 3111 0053 00 5121 119 007 Front Head 1
7 3111 0062 00 5121 121 007 Cap Nut 2
8 3111 0023 00 5121 119 009 Conical Spring 2
9 3111 0020 00 5121 119 010 Pawl 2
10 3111 0066 00 5121 119 011 50 Drill Chuck (Hexagon 22 X 108 mm) 1
10.1 3111 0051 00 5121 119 011 DRILL CHUCK (Optional) 19 x 108 mm(¾” x 4¼”) 1
11 3111 0024 00 5121 119 012 Driver 1
12 3111 0019 00 5121 119 013 Ratchet Wheel 1
13 3111 0017 00 5121 119 014 Intermediate Part 1
14 3111 0050 00 5121 121 014 Piston 1
15 3111 0015 00 5121 119 016 Cylinder 1
16 (17-19) 3111 0047 80 5121 121 017 80 Cover, Complete (SL No. 17,18,19) 1
17 3111 0047 00 5121 121 017 Cover 1
18 3111 0048 00 5121 121 018 Bushing 1
19 0108 3241 00 5121 119 019 Pin (Ø 4 X 22 mm) 1
20 3111 0049 00 5121 121 019 Main Valve 1
21 3115 2096 00 5121 121 020 Throttle Housing 1
22 3115 1967 00 5121 121 021 Valve 1
23 3115 2086 00 5121 121 022 Throttle Lever 1
24 3111 0044 00 5121 121 023 Inlet Nipple 1
25 3111 0043 00 5121 121 024 Adapter 1
26 3000 5825 02 5121 121 025 Adapter 1
27 3115 1543 00 5121 113 026 Hose Nipple (19 mm) 1
28 9000 0338 00 5121 113 027 Wing Nut 1
29 3115 0811 00 5121 121 028 Handle Bracket 1
30 (31-32) 3310 0569 80 5121 113 037 80 Handle, Complete (SL No. 31,32) 1
31 5121 113 037 21 Handle 1
32 3310 0572 00 5121 113 038 Bushing 2
33 0108 1360 00 5121 113 036 Pin (Ø 8 X 36 mm) 2
34 3111 0061 00 5121 121 032 Side Bolt 2
35 3000 0121 00 5121 109 033 54 Gasket 1
36 3111 0045 00 5121 121 034 Flushing Tube 1
37 0663 2124 00 5121 134 079 O-Ring (Ø 17.3 X 2.4 mm) 1
38 3111 0046 00 5121 121 036 Plug 1
