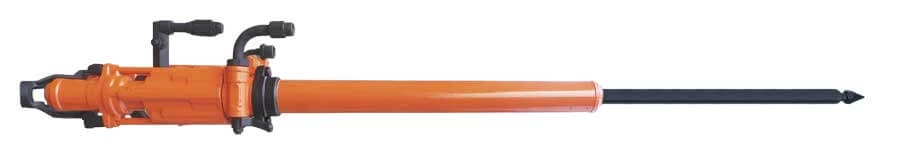

The MS250 stoper drill is made for miners who demand nothing but the best. This tool allows users to drill up whilst also enabling them to effortlessly control the drill and fine-tune it using minimal effort. One of this tool’s best features was its massive contact areas between major cylinder components, which in turn reduced crushing pressure while simultaneously prolonging the life of the product.
Chuck Size : | 22×108 mm |
Air consumption@ 6 Bar : | 83 l/s |
Piston diameter : | 79.4 mm |
Stroke length : | 67.7 mm |
Air Hose Connection : | 25 mm |
Water Connection : | 13 mm |
Torque : | 29-35 kgf-m at 620 kPa |
Impact rate : | 2300 BPM |
Chuck Size : | 7/8 x 4¼ in |
Air consumption@ 6 Bar : | 180 cfm |
Piston diameter : | 3.125 in |
Stroke length : | 2.625 in |
Air Hose Connection : | 1 in |
Water Connection : | 1/2 in |
Torque : | 210-250lbf-ft 90psi |
Impact rate : | 2300 BPM |
Stoper Drill With Leg
Size : | 31 in | 34 in | 24 in |
Ordering Part No. : | 5111 148 000 | 5111 148 000 50 | 5111 148 000 51 |
Weight W/ Leg : | 45.8kg | 49 kg | 42 kg |
Feed Leg Stroke : | 787 mm | 864 mm | 610 mm |
Length Retracted : | 1635 mm | 1750 mm | 1495 mm |
Length Extracted : | 2422 mm | 2614 mm | 2105 mm |
Size : | 31 in | 34 in | 24 in |
Ordering Part No. : | 5111 148 000 | 5111 148 000 50 | 5111 148 000 51 |
Weight W/ Leg : | 101 lb | 108 lb | 93 lb |
Feed Leg Stroke : | 31 in | 34 in | 24 in |
Length Retracted : | 64 in | 69 in | 59 in |
Length Extracted : | 95 in | 103 in | 83 in |
Weight : | 41.3 kg |
Air consumption @6 Bar : | 83 l/s |
Stroke length : | 67.7 mm |
Air Hose Connection : | 25 mm |
Impact rate : | 2300 BPM |
Weight : | 32.4 kg |
Length without Leg : | 688 mm |
Piston diameter : | 76 mm |
Water Connection : | 13 mm |
Impact rate : | 2256 BPM |
Weight : | 22.6 kg |
Stroke : | 55 mm |
Length incl.: | 730 mm |
Air Consumption : | 116.5 @ 500 kPA |
Impact Rate : | 2175 @ 500 kPA |
Weight : | 31 kg |
Stroke : | 70 mm |
Length incl.: | 760 mm |
Air Consumption : | 145 @ 500 kPA |
Impact Rate : | 2000 @ 500 kPA |
