Model No. : S215
Type : Underground Drill
S215 Pusher Leg Jackhammer
The Mindrill S215 Pusher leg jackhammer is ideal for blast hole drilling in narrow vein-stopping operations, making it the industry standard in South Africa. The lightweight yet powerful S215 pneumatic air leg rock drill is ideal for drilling and maneuvering in low stoping height conditions. We are a leading manufacturer of pusher air leg and pusher leg/air leg spare parts, based in India. Our products are of the highest quality and we always aim to provide our customers with the best possible experience.
Technical Specifications:
| Weight : | 22.6 kg |
| Stroke : | 55 mm |
| Length incl. Drill Steel retainer : | 730 mm |
| Air Consumption : | 116.5 @ 500 kPA |
| Impact Rate : | 2175 @ 500 kPA |
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5111 101 000 | 22 x 158 mm (7/8 in x 6 ¼ in) |
| 5111 102 000 50 | 25 x 158 mm (1 in x 6 ¼ in) |
Key Features
- Noise reducer muffler
- Spring Retainer to reduce weight
- Efficient lubrication
- Low weight & high performance perfect for drilling in low stoping height conditions
- Can be used as Sinker with optional T-handle
- Can be used to install roof bolt
Related Products
| Weight : | 41.3 kg |
| Air consumption @6 Bar : | 83 l/s |
| Stroke length : | 67.7 mm |
| Air Hose Connection : | 25 mm |
| Impact rate : | 2300 BPM |

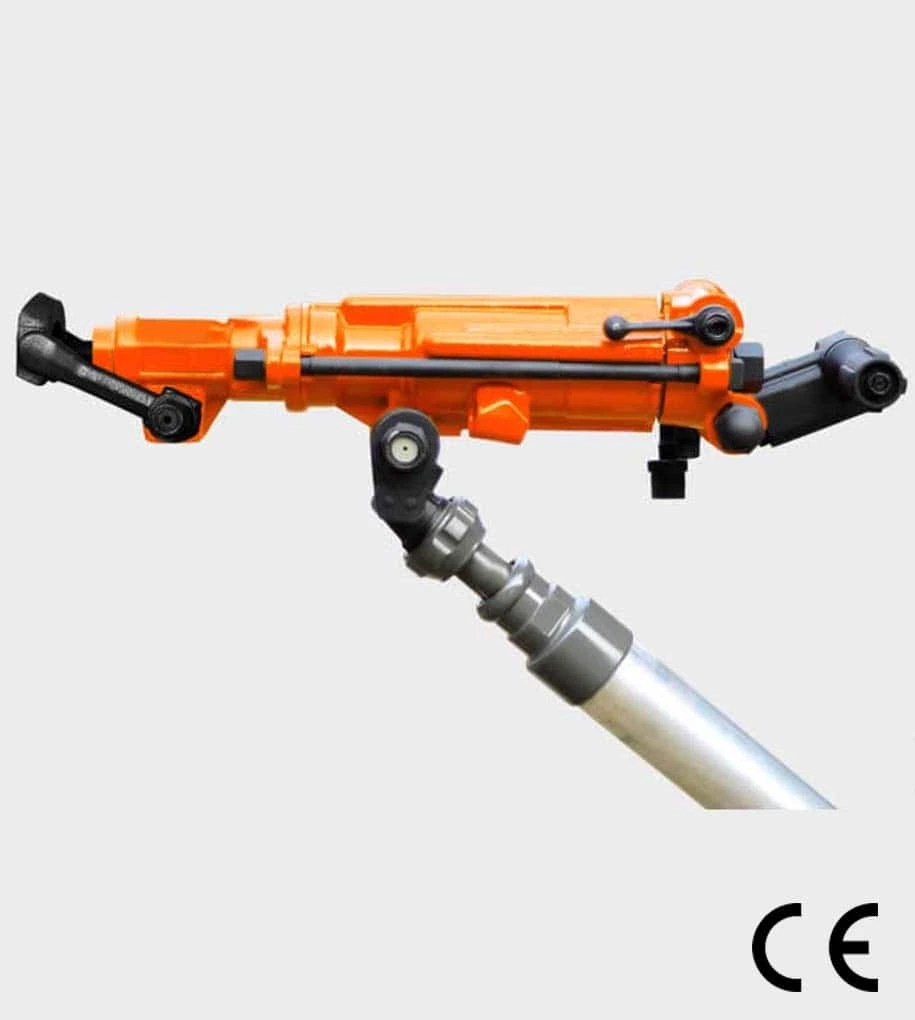

MJ250
| Weight : | 32.4 kg |
| Length without Leg : | 688 mm |
| Piston diameter : | 76 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2256 BPM |

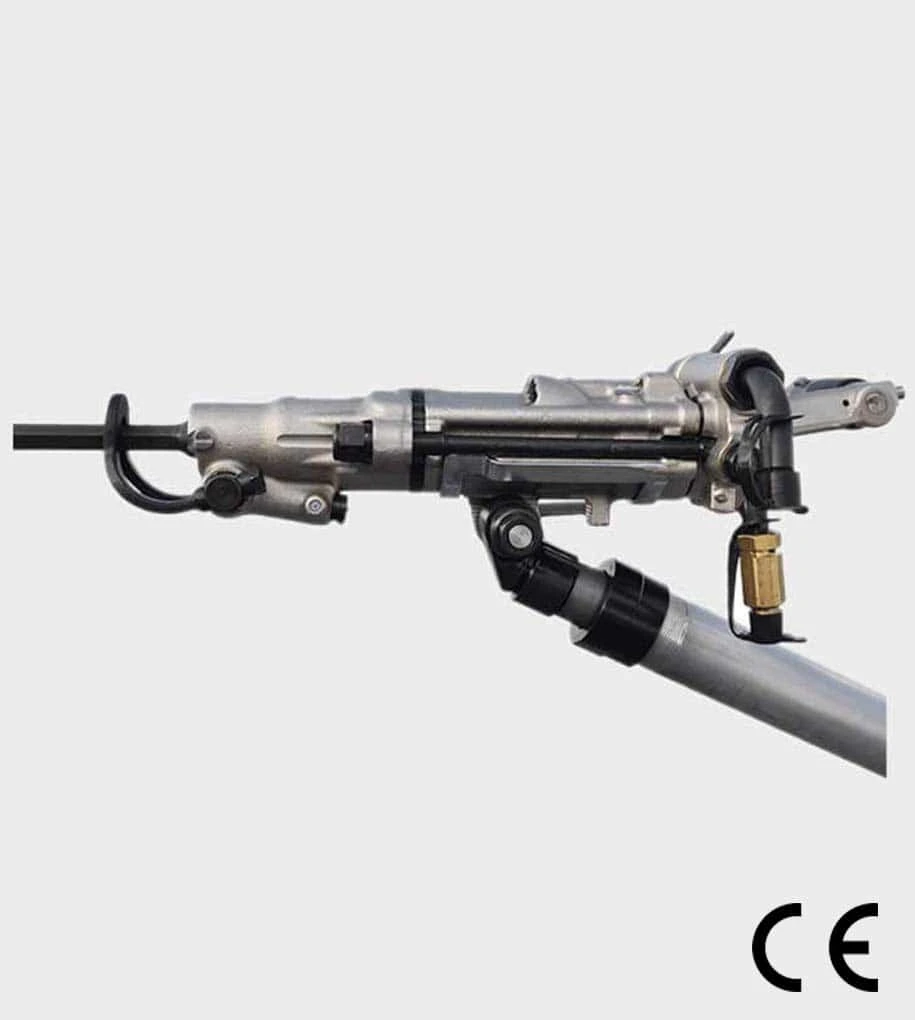

MJ83
| Chuck Size : | 22×108 mm |
| Piston diameter : | 79.4 mm |
| Stroke length : | 67.7 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2300 BPM |

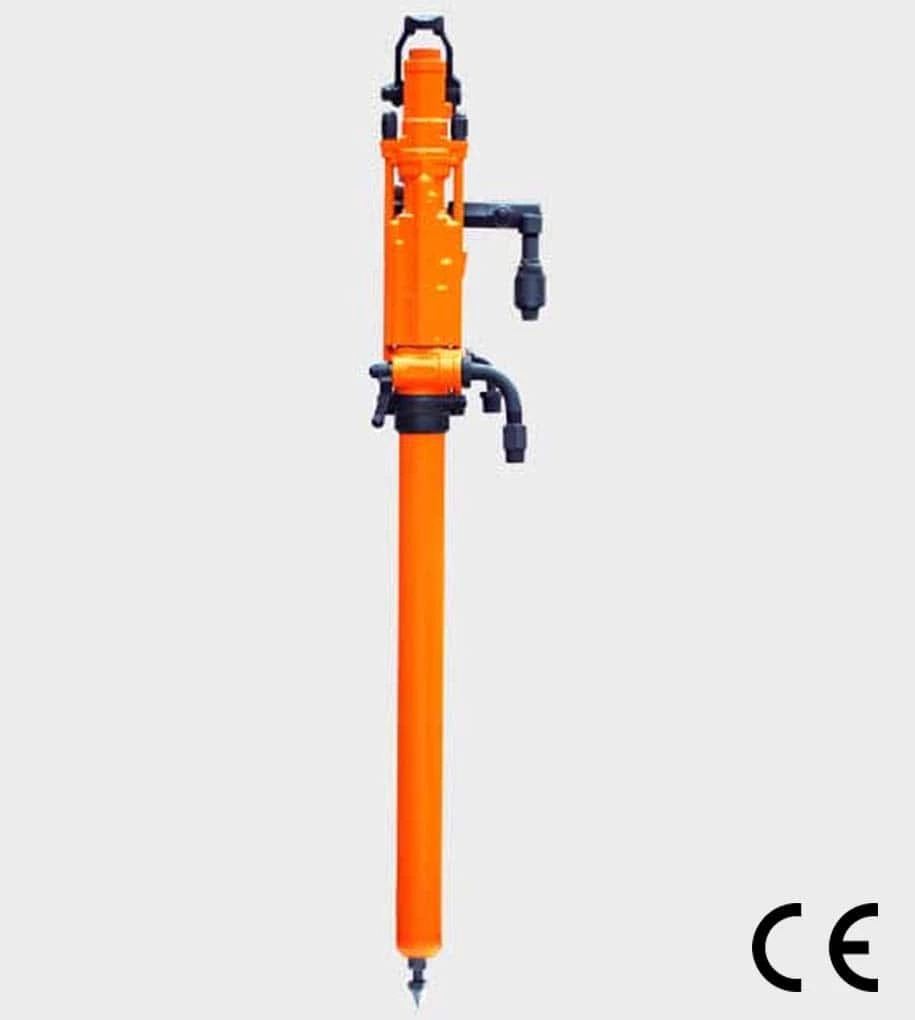

MS250
| Weight : | 31 kg |
| Stroke : | 70 mm |
| Length incl.: | 760 mm |
| Air Consumption : | 145 @ 500 kPA |
| Impact Rate : | 2000 @ 500 kPA |

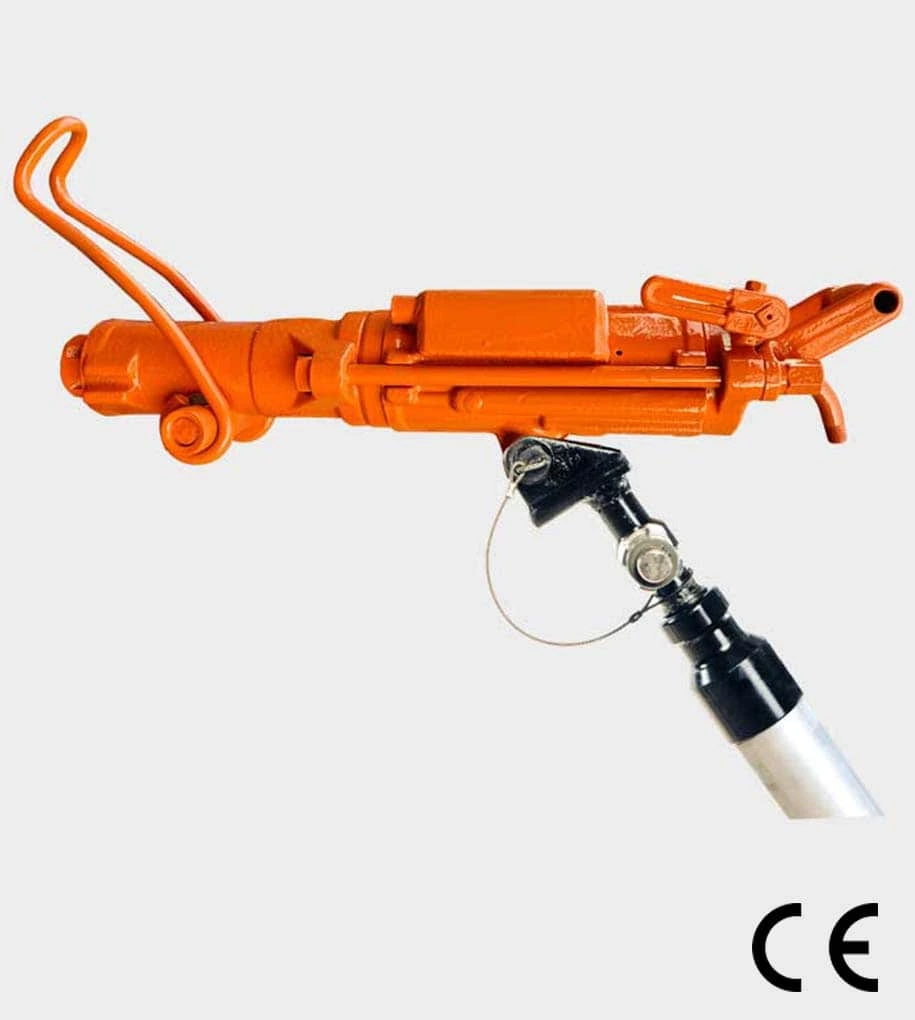

S25
