Model No. : M630
Type : Underground Drills

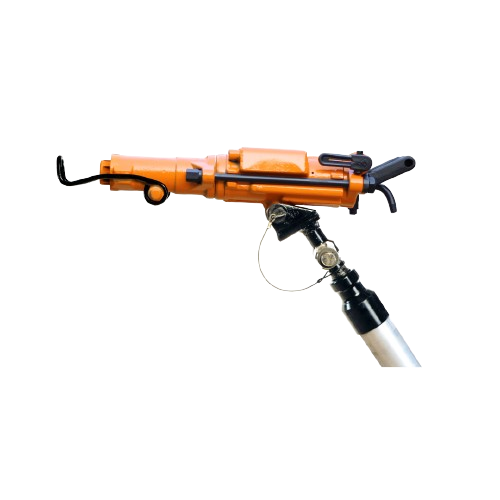

M630 Underground Jackleg Drill
The Mindrill M630 jackleg drill has high penetration speed. It has Rig mount option for dimensional stone and quarrying applications. Parts interchangeable with Boart Longyear S25 drill.
Technical Specifications:
| Weight : | 31 kg |
| Shank Size : | 159 mm x 22 mm |
| Length: | 584 mm |
| Impact Rate : | 2000 mm |
| Air Consumption @ 5bar : | 88 I/s |
Ordering Part No.
| Part No. | Chuck Size | Air Connection |
|---|---|---|
| 5111 105 000 2219 | 22 x 160 mm | 19 mm (3/4 in) |
| 5111 105 000 2519 | 22 x 160 mm | 19 mm (3/4 in) |
Key Features
- High penetration speed.
- Rig mount option for dimensional stone and quarrying applications.
- Ideal for development of end drilling.
- Hard hitting machine with versatile applications.
- Can be used as Sinker with optional T-handle.
- Can be used to install roof bolt.
- Parts interchangeable with Boart Longyear S25 drill.
