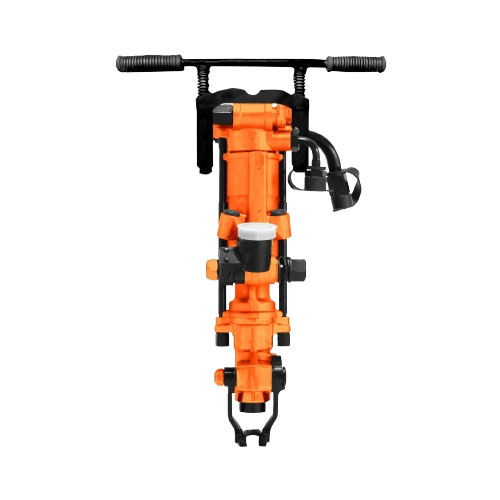

Mindrill has taken the industry-standard MH250 to the next level by incorporating cutting-edge noise suppression technology. This innovation channels more energy directly into the rock face, minimizing the impact on the driller's body. Independent tests have demonstrated that the MH250 not only reduces noise but also boosts torque and penetration rates. As a result, drillers can achieve higher production rates with significantly less strain on their ears, hands, and feet.
Weight : | 39.7 kg |
Stroke Length : | 67.7 mm |
Air Consumption @6Bar : | 83 I/s |
Air Hose Connection : | 25 mm |
Water Connection : | 13 mm |
Piston Diameter: | 79.4 mm |
Impact Rate (BPM) : | 2300 |
Chunk Size : | 22 x 108 mm |
Weight : | 87.52 lb |
Stroke Length : | 2.625 in |
Air Consumption @6Bar : | 180 cfm |
Air Hose Connection : | 1 in |
Water Connection : | 1/2 in |
Piston Diameter: | 3.125 in |
Impact Rate (BPM) : | 2300 |
Chunk Size : | 7/8 x 4 1/4 in |
Part No. | Chuck Size |
---|---|
5010 025 000 | 22 x 108 mm (7/8 in x 4¼ in) |
Weight : | 9.8 kg |
Length : | 565 mm |
Bore Diameter : | 17 mm x 29 mm |
Stroke Length : | 41 mm |
Air Consumption : | 24 l/s |
Penetration Rate : | 230 mm/min |
Weight : | 11.1 kg |
Chuck Size : | 22 x 108 mm |
Length : | 505 mm |
Air Consumption : | 24 l/s |
Impact Rate : | 2580 BPM |
Revolutions : | 220 RPM |
Weight : | 17.8 kg |
Length : | 510 mm |
Bore Diameter : | 28 mm x 34 mm |
Stroke Length : | 60 mm |
Air Consumption : | 39 l/s |
Penetration Rate : | 275 mm/min |
Weight : | 24.5 kg |
Length : | 584 mm |
Stroke Length : | 51 mm |
Air Consumption : | 48 l/s |
Working Pressure : | 6 bar |
Penetration Rate : | 230 mm/min |
Weight : | 26 kg |
Shank Size : | 22 mm x 108 mm |
Optional Shank Size : | 25 mm x 108 mm |
Length : | 575 mm |
Air Consumption : | 48 l/s |
Air Inlet : | 20 mm |
Weight : | 26 kg |
Chuck Size : | 22 x 108 mm |
Length : | 668 mm |
Stroke Length : | 59 mm |
Air Consumption : | 58 l/s |
Penetration Rate : | 425 mm/min |
Weight : | 24 kg |
Chuck Size : | 22 x 108 mm |
Length : | 565 mm |
Stroke Length : | 59 mm |
Air Consumption : | 58 l/s |
Penetration Rate : | 425 mm/min |
