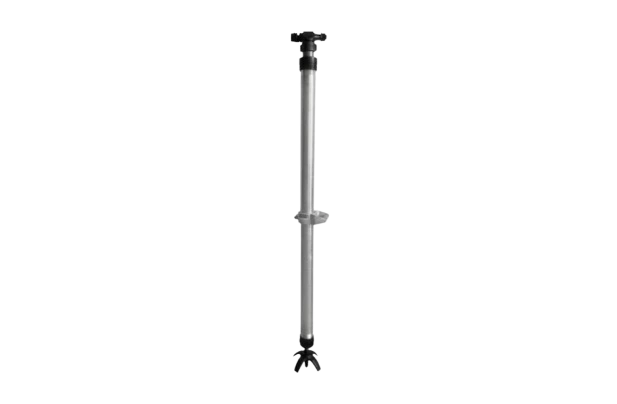

The MPL07 pusher leg is designed for the MJ83F jackleg drill. Ergonomic controls for operator, with push button stoper leg retraction and motorcycle control feed. Balanced weight distribution for easy operator control.
Specification | Metric | Imperial |
Feeding Length : | 1370 mm | 54in |
Retracted Length : | 1830 mm | 72 in |
Extracted Length : | 3200 mm | 126 in |
Piston bore : | 68 mm | 2.7in |
Specification | Metric | Imperial |
Feeding Length : | 1070 mm | 42 in |
Retracted Length : | 1520 mm | 60 in |
Extracted Length : | 2590 mm | 102 in |
Piston bore : | 68 mm | 2.7in |
Specification | Metric | Imperial |
Feeding Length : | 910 mm | 36 in |
Retracted Length : | 1370 mm | 54 in |
Extracted Length : | 2290 mm | 90 in |
Piston bore : | 68 mm | 2.7in |
Part No. | Feeding Length |
---|---|
5115 128 000 | 54 in |
5115 128 000 50 | 42 in |
5115 128 000 51 | 36 in |
