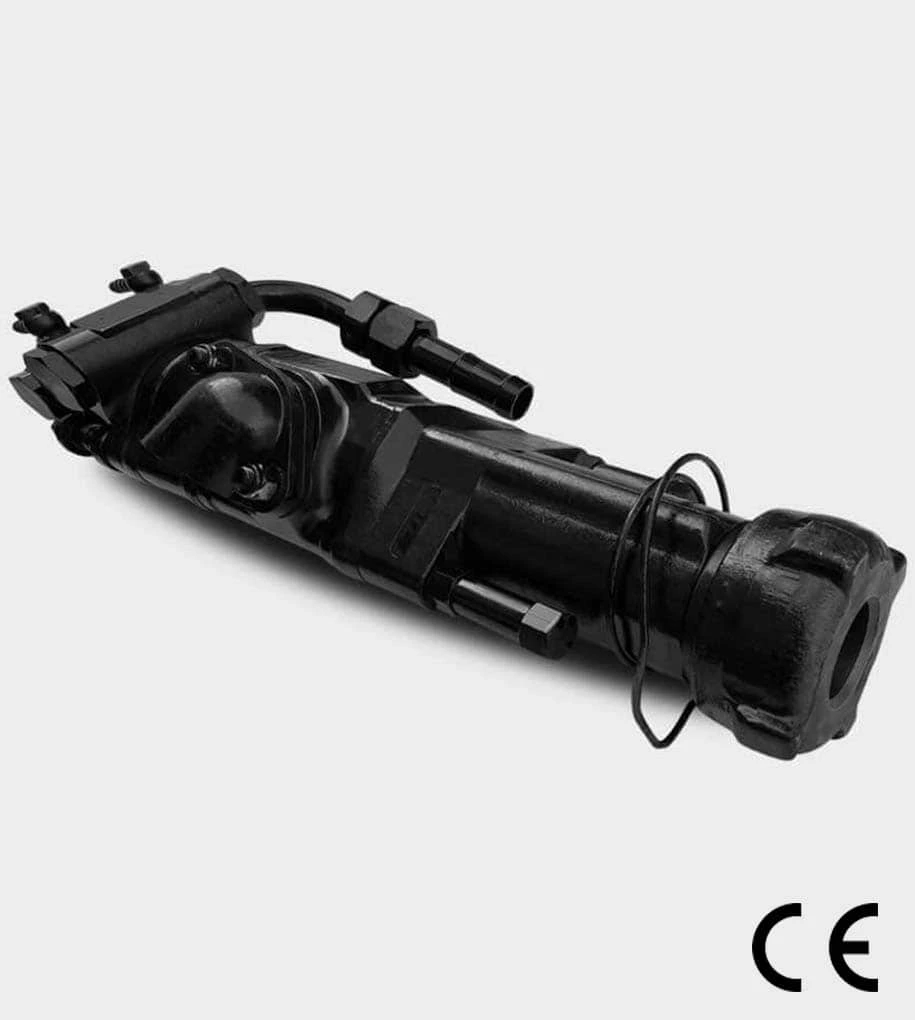

The MPD120 pneumatic drifter drill is a highly versatile yet low-cost drill suitable for both surface and underground applications. This drill can be used with a variety of shank adapters making it highly versatile and it is designed especially for long-hole drilling, bench drilling, and drifting with hole diameters of 51-89 mm (2-3.5 in.). It is also easily mountable on a variety of drill rigs. This MPD120 drill has both water and air flushing options and can be converted easily from one to another based on the operator’s ever-changing needs. It has a rifle-bar actuated rotation motor which has eight pawl sets, providing four for each direction and thus enabling rotation in either direction. The incoming air hose connection can be made on either side of the drill to ensure easy control and operator comfort. Mindrill also provides high-quality spare drifter parts for prolonged drill life.
Weight : | 69 kg |
Length : | 780 mm |
Air Consumption : | 167 I/sec |
Chuck : | 38 mm |
Piston Diameter : | 120 mm |
Rotation Speed : | 0 – 210 rpm |
Weight : | 152 lb |
Length : | 2 ft 6.7 in |
Air Consumption: | 353 cfm |
Chuck: | 1.5 in |
Piston Diameter : | 4.75 in |
Rotation Speed : | 0 – 210 rpm |
Part No. | Chuck Size |
---|---|
5113 102 000 | 38 mm (lugged chuck) |
Weight : | 39 kg |
Length : | 630 mm |
Air Consumption: | 70 lpm |
Drill Still Chuck Hex : | 22 mm x 108 mm |
Piston Diameter : | 100 mm |
Impact Rate : | 2000 BPM |
Weight : | 150 kg |
Length : | 1015 mm |
Air Consumption: | 233 l/s |
Rotation Torque : | 320 N-m |
Bore Diameter : | 35 mm – 89 mm |
Impact Rate : | 1630 BPM |
Weight : | 35 kg |
Length : | 637 mm |
Piston Diameter : | 90 mm |
Drill Still Chuck Hex : | 22 x 108 mm |
Air Hose Connection : | 25 mm |
Impact Rate : | 2000 BPM |
