Model No. : MPL250
Type : Pusher Legs

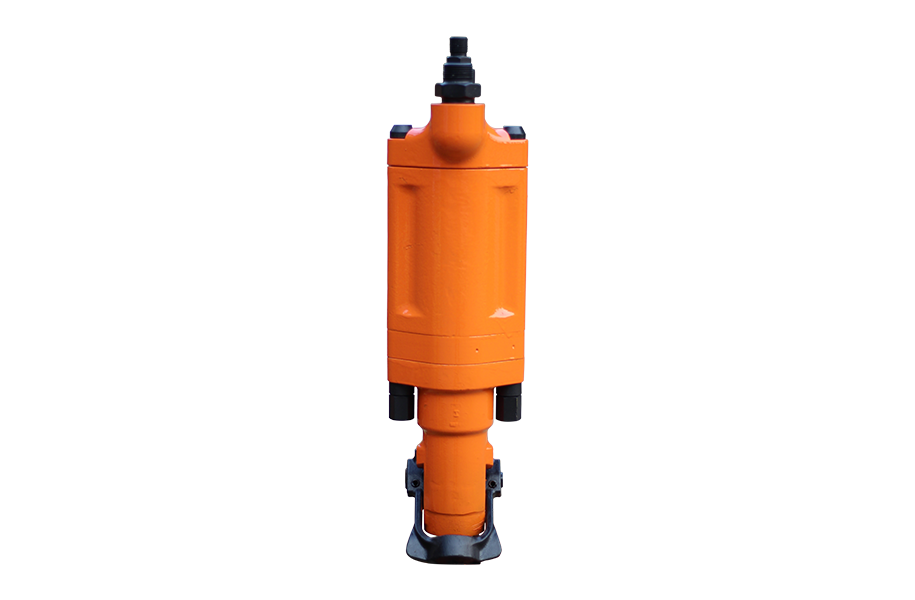

Pusher Leg MPL250
The MPL250 pusher leg is designed for the MJ250 jackleg drill. It is balanced for easy operator control. The pusher leg controls are integrated into the MJ250 drill backhead with push button jackleg retraction.
Technical Specifications:
| Specification | Metric | Imperial |
| Weight : | 13.6 kg | 30.0 lb |
| Feeding Length : | 1295 mm | 51in |
| Retracted Length : | 1727 mm | 68 in |
| Extracted Length : | 3022 mm | 119 in |
| Piston bore : | 68 mm | 2.7in |
Ordering Part No.
| Part No. | Feeding Length |
|---|---|
| 5115 101 000 | 51 in |
| 5115 101 000 50 | 39 in |
| 5115 101 000 51 | 30 in |
Key Features
- Balanced weight distribution for easy operator control
- Ergonomic controls for operator, with push button stoper leg retraction and
motorcycle control feed - High penetration rate
- High torque
- Convenient operating controls
- Long life
- Comes with a locking steel puller
- Market leader in North & South American continents
- Parts interchangeable with Boart Longyear A755A pusher leg
