Model No. : YODHA150-1X
Type : Crawler Drill Machines

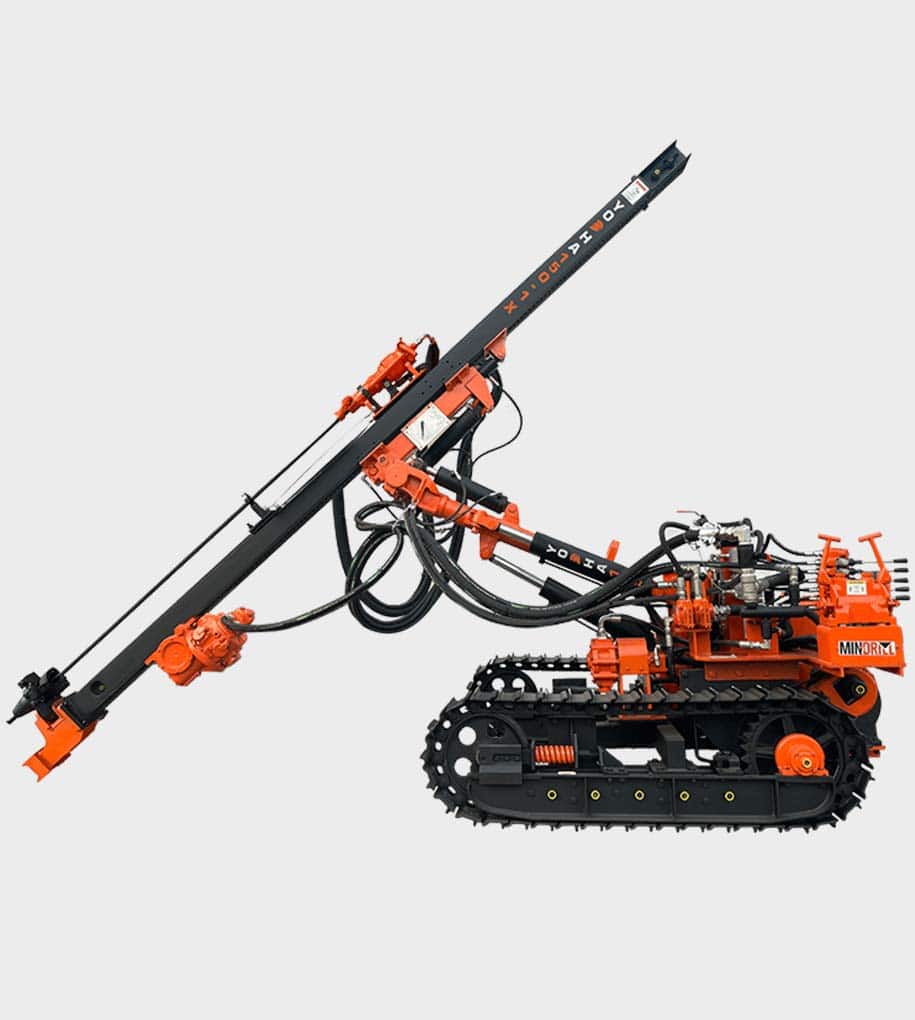

Crawler Drill YODHA150-1X
Mindrill YODHA100 crawler drill is a pneumatic crawler drill for drilling with a DTH hammer. It comes with two independent 5 HP propulsion air motors steered with a piston-driven rotary head. Its robust construction, track-mounted frame, and mainframe walking beam oscillator assembly is ideal for drilling in confined areas with rough terrain. The strong 7.5 HP air-powered hydraulic pump ensures high feed force and supreme productivity. The DTH hammer version can drill 115-121 mm wide holes.
Benefits of Crawler Drilling Rig:
The YODHA150-1X is a low-cost, effective, and versatile drilling rig that offers great return on investment for a wide range of applications. The compact and lightweight track-mounted frame is ideal for maneuvering over rough terrains and confined areas. It has a versatile feed boom arrangement that allows it to perform drilling in a wide range of angles and orientations.
Technical Specifications:
| Carrier | |
|---|---|
| Tramming speed : | 3.2 km/h |
| Traction force : | 17 kN |
| Track oscillation : | ±20° |
| Ground clearance : | 230 mm |
| Hill climbing ability : | 30% |
| Pneumatic – driven chain feed | |
|---|---|
| Feed length : | 3665 mm |
| Max. feed rate : | 0.3 m/s |
| Feed force pull up : | 1800 kg |
| Feed force pull down : | 2140 kg |
| Total length : | 5130 mm |
| Travel length : | 3565 mm |
| Weight | |
|---|---|
| Weight: | 2650 kg |
| Height and length | |
|---|---|
| Overall length: | 4700 mm |
| Width : | 1750 mm |
| Height (Guide horizontal) : | 2600 mm |
| Depth of drilling (DTH) : | 3.6 m |
| Hole range | |
|---|---|
| Hole Range (DTH): | 35 mm |
Recommended Air Compressor DTH
| Part No. | Model | Free Air Delivery (FAD) | Operating Pressure |
|---|---|---|---|
| 5114 103 000 52 | YODHA150-1X | 400 cfm (11326 l/min) | 100 psi (6.8bar) |
Key Features
- Single man operated high-production drill rig
- Capable of both DTH and drifting
- Quick conversion kit for switching between DTH & top hammer drilling
- Two independent air motor-powered track assemblies on either side
- Reliable self-propulsion
- Capable to drill holes of 35 mm (1.38 in) in diameter
