Model No. : ML630
Type : Airline Lubricators

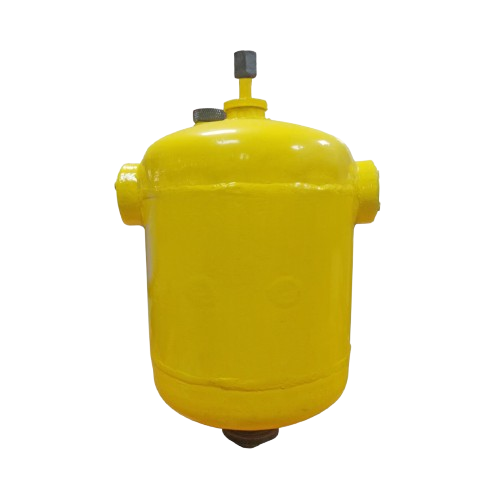

ML630 Lubricator
It is Lightweight and designed specially for light to medium construction and surface Jobs. Tuned valve system for higher efficiency. Can be used with various shank sizes.
Technical Specifications:
| Oil Volume: | 3 ltr. |
| Hose Diameter: | 25 mm |
| Max Working Pressure : | 10 bar |
| Pipe Thread Size at Intake or Outlet |
1½ in BSP |
Ordering Part No.
| Part No. | 5131 107 000 |
|---|
Key Features
- Lightweight
- Designed specially for light to medium construction and surface jobs
- Tuned valve system for higher efficiency
- Reversible piston with lubrication grooves to reduce maintenance costs and increase the life
- Can be used with various shank sizes
Related Products
| Weight: | 5.22 kg |
| Capacity : | 700 ml |
| Range from : | 5 to 6 bar |
| Air pressure: | Max 85 psi |
| Lenght: | 200 mm |
ML07
| Weight Empty: | 3.5 kg |
| Weight Full : | 5.5 kg |
| Capacity : | 700 ml |
| Length : | 200 mm |
| Air consumption: | 48 l/s |
ML100
| Weight Empty: | 3 kg |
| Oil Volume : | 1.3 ltr. |
| Max Working Pressure : | 17 bar |
| Air Flow Range : | 25-134 l/s |
| Hose Connection: | 25 mm |
ML130
| Weight : | 14.6 kg |
| Oil Volume : | 5 ltr. |
| Air Flow : | 25-130 l/s |
| Hose Connection: | 25mm |
| Max Working Pressure : | 20 bar |
ML500
| Weight : | 8.5 kg |
| Oil Volume : | 5 ltr. |
| Air Flow : | 25-130 l/s |
| Hose Diameter : | 25mm |
| Max Working Pressure : | 20 bar |
ML650
